Deep Dive: How Internet Calling Apps Work Under the Hood
An architect-level exploration of VoIP applications, push notifications, and real-time communication on Android
As mobile engineers, we often use apps like WhatsApp, Zoom, Google Meet, or Telegram for voice and video calls without thinking about the complex machinery underneath.
In this article, we’ll dissect the complete architecture of internet calling applications—from how your phone knows a call is incoming while the app is closed, to how audio packets traverse the internet in real-time.
Table of Contents
The Big Picture: VoIP Overview
The Three Pillars of Internet Calling
How Does Your Phone Know a Call Is Coming?
Signaling: The Handshake Protocol
Media Transport: Moving Audio & Video
NAT Traversal: The Hidden Challenge
Android Implementation Deep Dive

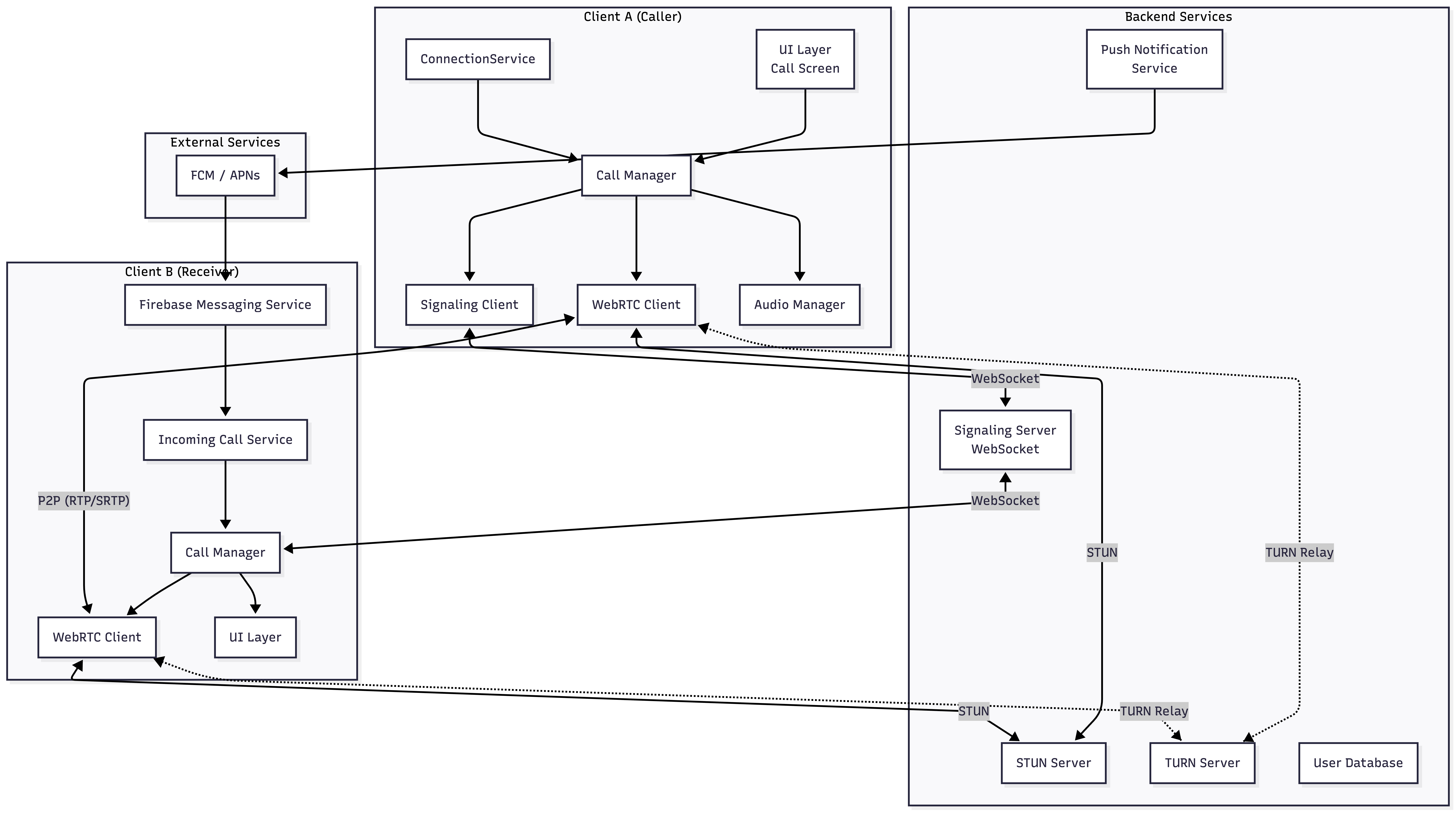

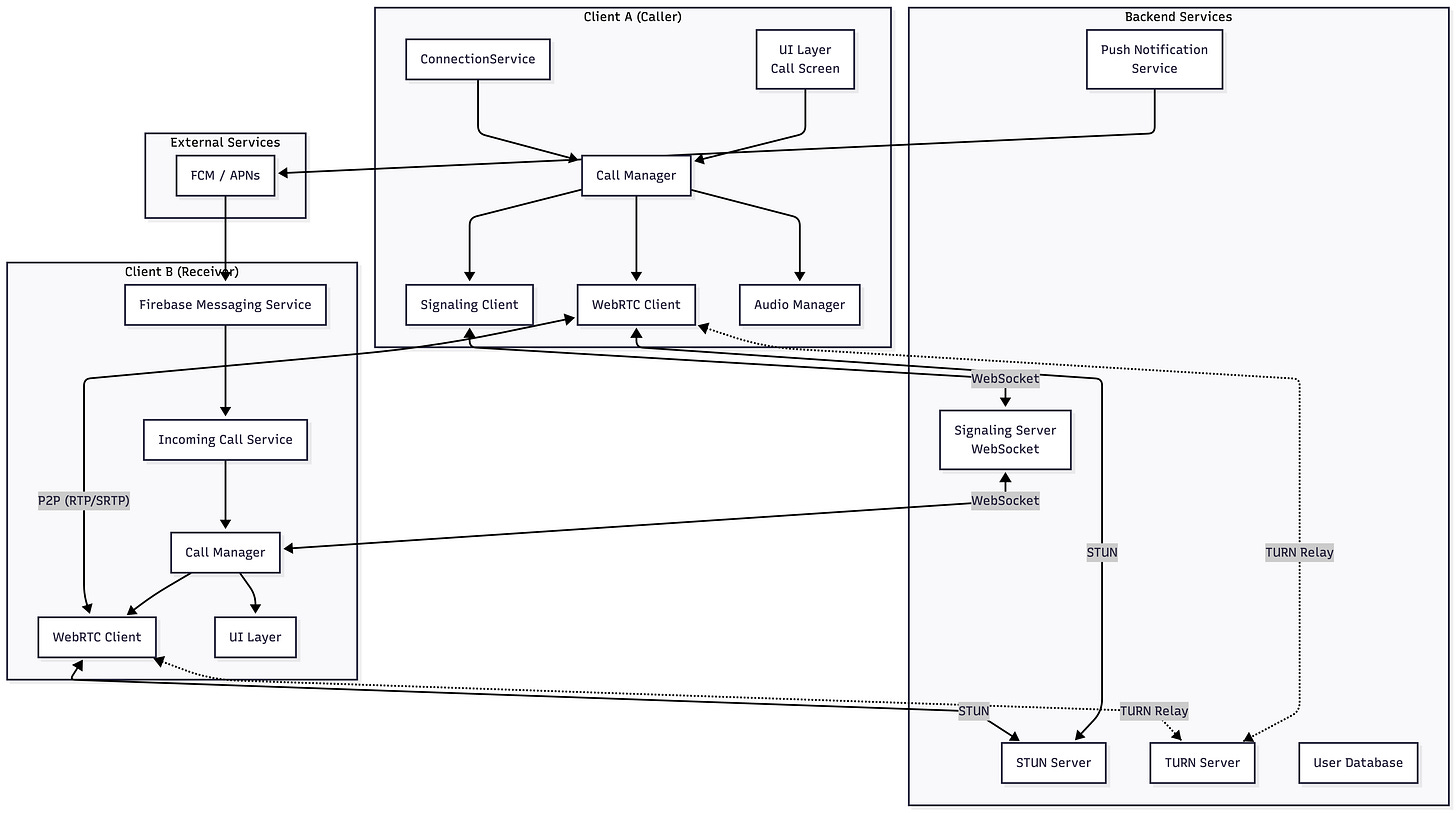

Architecture Diagram

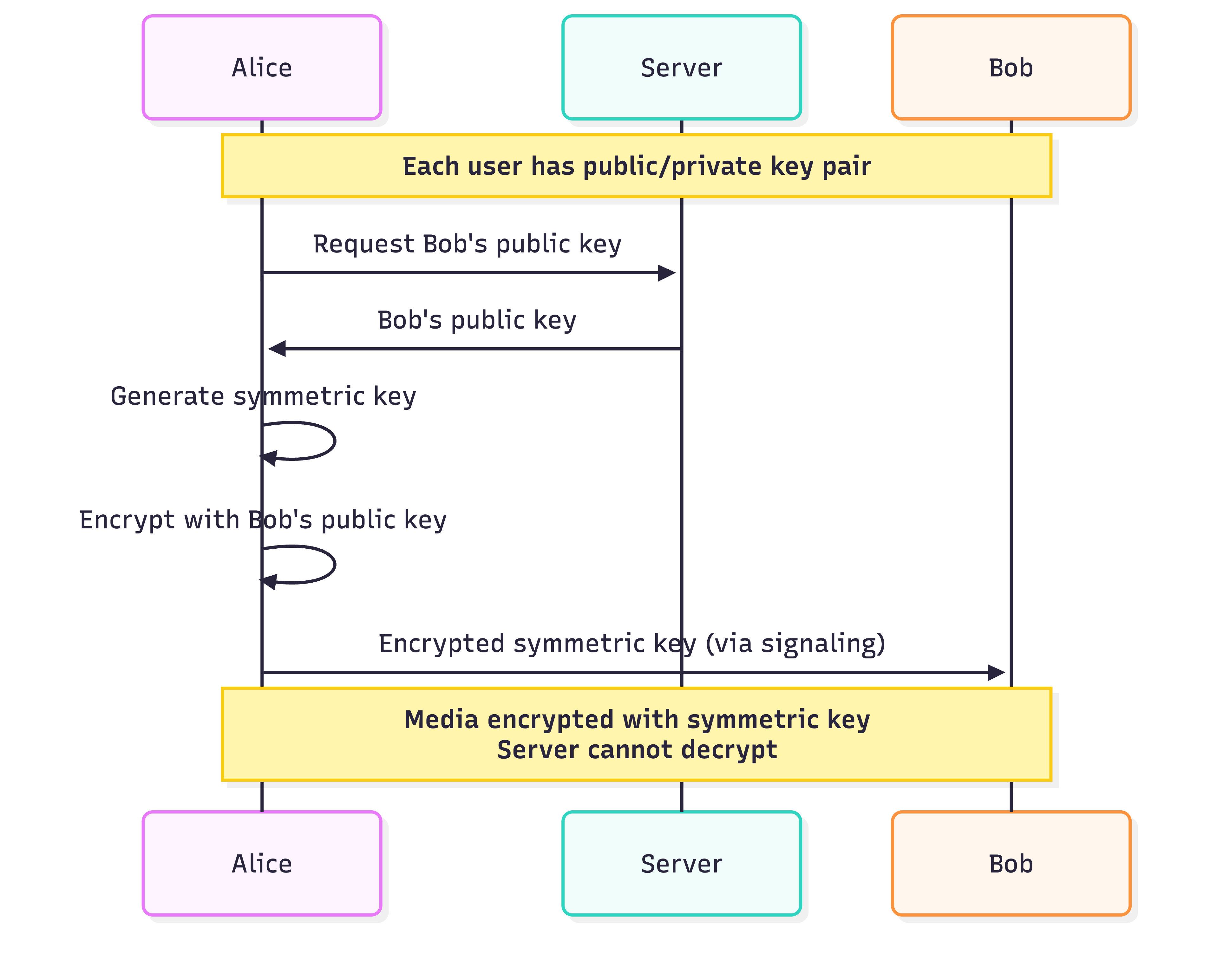

Security Considerations
Conclusion
The Big Picture: VoIP Overview

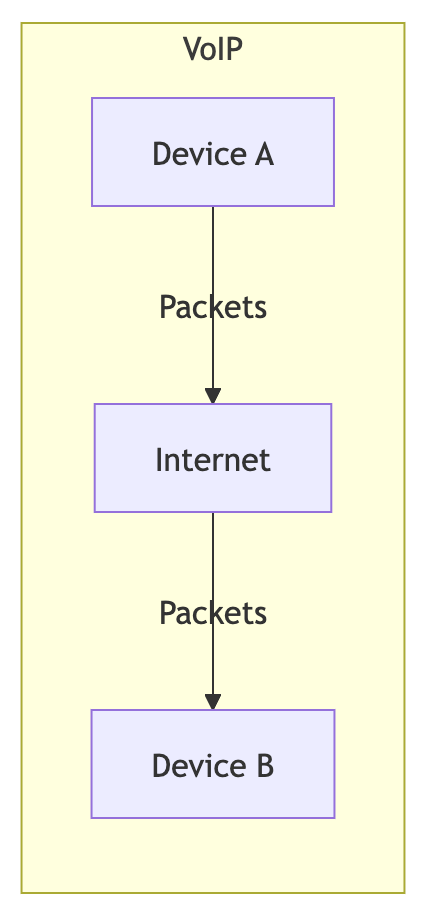

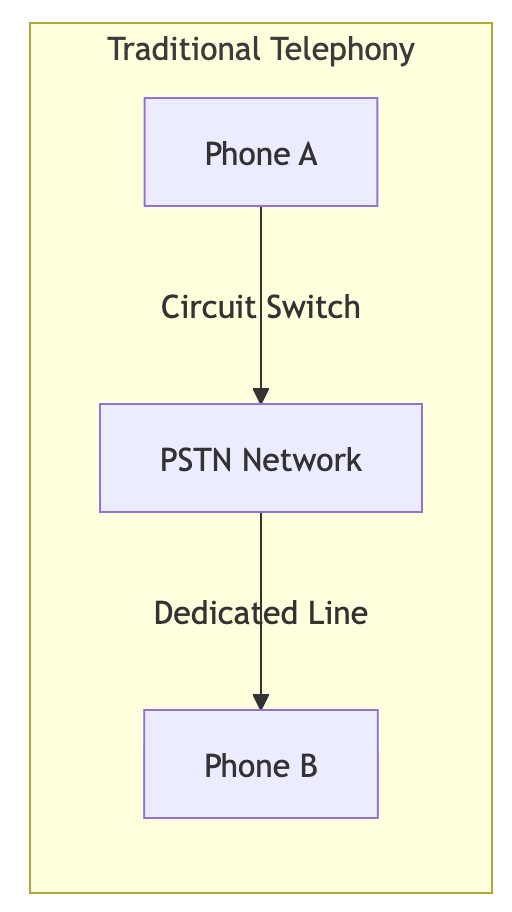

Voice over Internet Protocol (VoIP) is the technology that enables voice and video communication over the internet instead of traditional telephone networks. Unlike PSTN (Public Switched Telephone Network), which uses circuit-switched connections, VoIP uses packet-switched networks—breaking audio into small packets and sending them over IP networks
Key Characteristics of VoIP:
Packet-based: Audio is digitized, compressed, and sent as IP packets
Stateless by nature: Requires additional protocols to maintain call state
Latency-sensitive: Real-time communication requires sub-150ms latency
Bandwidth-efficient: Uses codecs like Opus, AAC, or G.711 for compression
The Three Pillars of Internet Calling

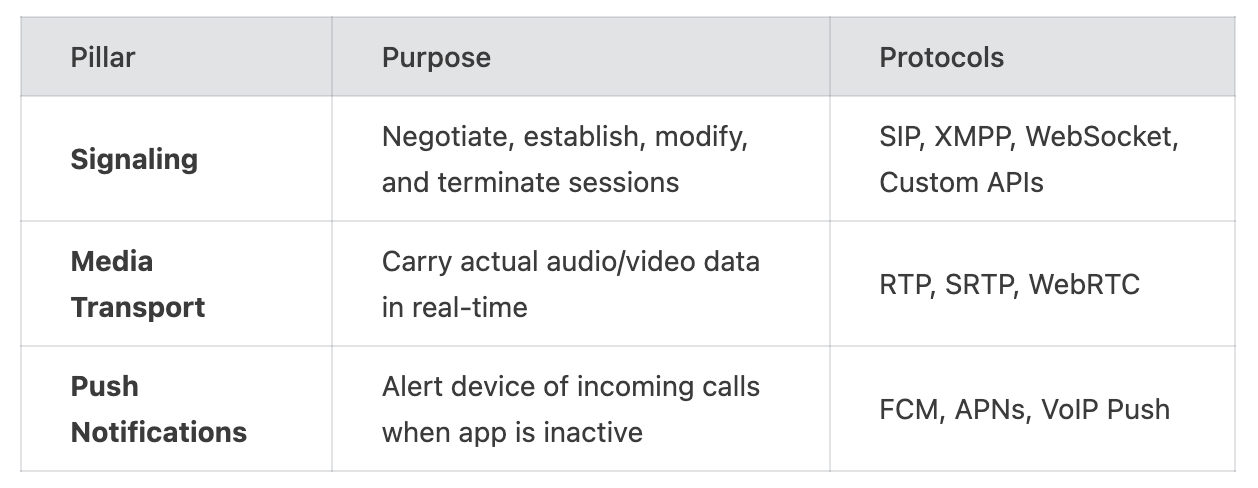

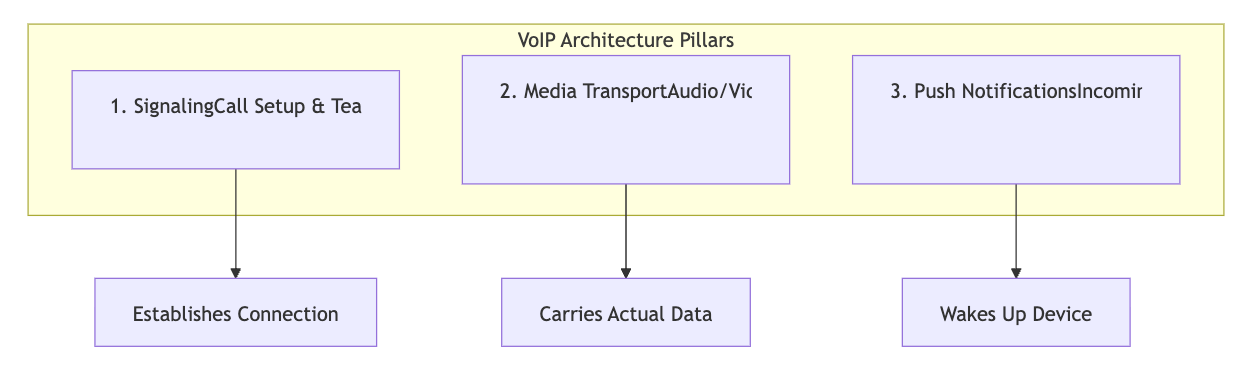

Every internet calling application is built on three fundamental pillars:
How Does Your Phone Know a Call Is Coming?

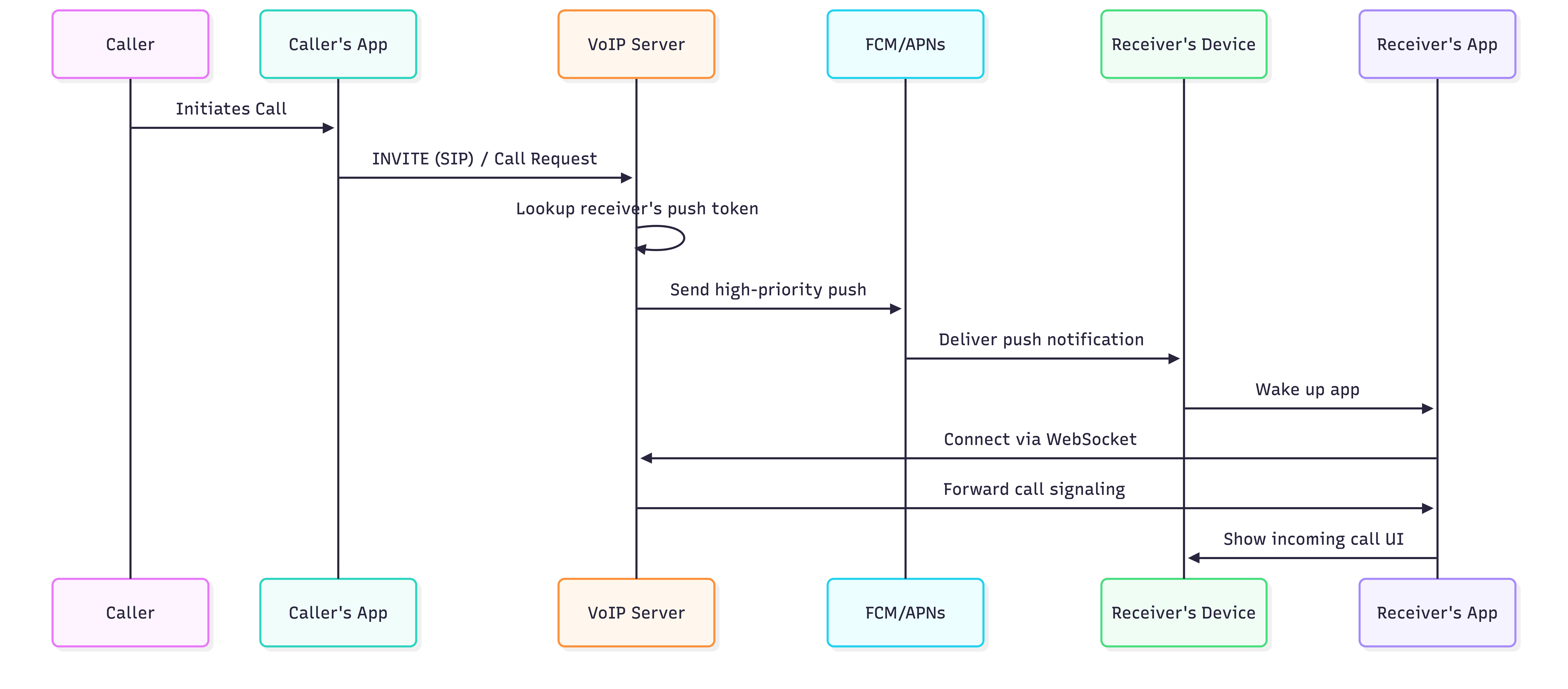

This is perhaps the most intriguing part of VoIP architecture. When your phone is in your pocket with the screen off and the app is not running, how does it ring?
The Challenge
Mobile operating systems are designed to save battery. They aggressively kill background processes and restrict network access. A naive implementation that keeps a persistent socket connection would:
Drain battery rapidly
Be killed by the OS within minutes
Violate app store guidelines
The Solution: Push Notifications
Push Notification Types for Calls
1. Firebase Cloud Messaging (FCM) - Android
// High-priority data message for calls
{
“to”: “device_push_token”,
“priority”: “high”,
“data”: {
“type”: “incoming_call”,
“caller_id”: “user_123”,
“caller_name”: “John Doe”,
“call_id”: “call_abc123”,
“room_id”: “room_xyz”,
“timestamp”: “1699900000”
}
}IMPORTANT
For calls, you MUST use data messages with priority: high, not notification messages. Notification messages may not wake the app reliably.
2. VoIP Push (iOS)
Apple provides a special push notification type specifically for VoIP apps. Unlike regular push notifications:
Always delivered immediately
Always wakes the app
Requires using CallKit framework
3. Android’s Foreground Service Requirement
Starting from Android 10+, when a high-priority FCM message arrives:
class CallFirebaseMessagingService : FirebaseMessagingService() {
override fun onMessageReceived(remoteMessage: RemoteMessage) {
val data = remoteMessage.data
if (data[”type”] == “incoming_call”) {
// Must start foreground service within 10 seconds
val intent = Intent(this, IncomingCallService::class.java).apply {
putExtra(”caller_id”, data[”caller_id”])
putExtra(”call_id”, data[”call_id”])
}
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.O) {
startForegroundService(intent)
} else {
startService(intent)
}
}
}
}Signaling: The Handshake Protocol
Signaling is the process of coordinating communication. Before any audio flows, both parties must agree on:
Session parameters: Codecs, encryption keys, media ports
Network information: IP addresses, NAT traversal candidates
Call state: Ringing, answered, rejected, ended
Common Signaling Protocols
1. SIP (Session Initiation Protocol)
The industry standard for VoIP signaling. Used by enterprise systems, Ooma, and many PBX systems.
INVITE sip:bob@biloxi.example.com SIP/2.0
Via: SIP/2.0/UDP pc33.atlanta.example.com;branch=z9hG4bK776asdhds
Max-Forwards: 70
To: Bob <sip:bob@biloxi.example.com>
From: Alice <sip:alice@atlanta.example.com>;tag=1928301774
Call-ID: a84b4c76e66710@pc33.atlanta.example.com
CSeq: 314159 INVITE
Contact: <sip:alice@pc33.atlanta.example.com>
Content-Type: application/sdp
Content-Length: 142
v=0
o=alice 2890844526 2890844526 IN IP4 pc33.atlanta.example.com
s=Session SDP
c=IN IP4 pc33.atlanta.example.com
t=0 0
m=audio 49170 RTP/AVP 0
a=rtpmap:0 PCMU/80002. WebRTC Signaling (Custom)
WebRTC doesn’t specify a signaling protocol—it’s up to the application. Most use:
WebSocket for real-time bidirectional communication
REST APIs for initial setup
Custom JSON messages for session negotiation
// Typical WebRTC signaling message
data class SignalingMessage(
val type: String, // “offer”, “answer”, “ice-candidate”
val callId: String,
val fromUserId: String,
val toUserId: String,
val payload: Any // SDP or ICE candidate
)
// SDP Offer
{
“type”: “offer”,
“callId”: “call_123”,
“fromUserId”: “alice”,
“toUserId”: “bob”,
“payload”: {
“sdp”: “v=0\no=- 4611731400430051336 2 IN IP4 127.0.0.1...”,
“type”: “offer”
}
}The Offer/Answer Model

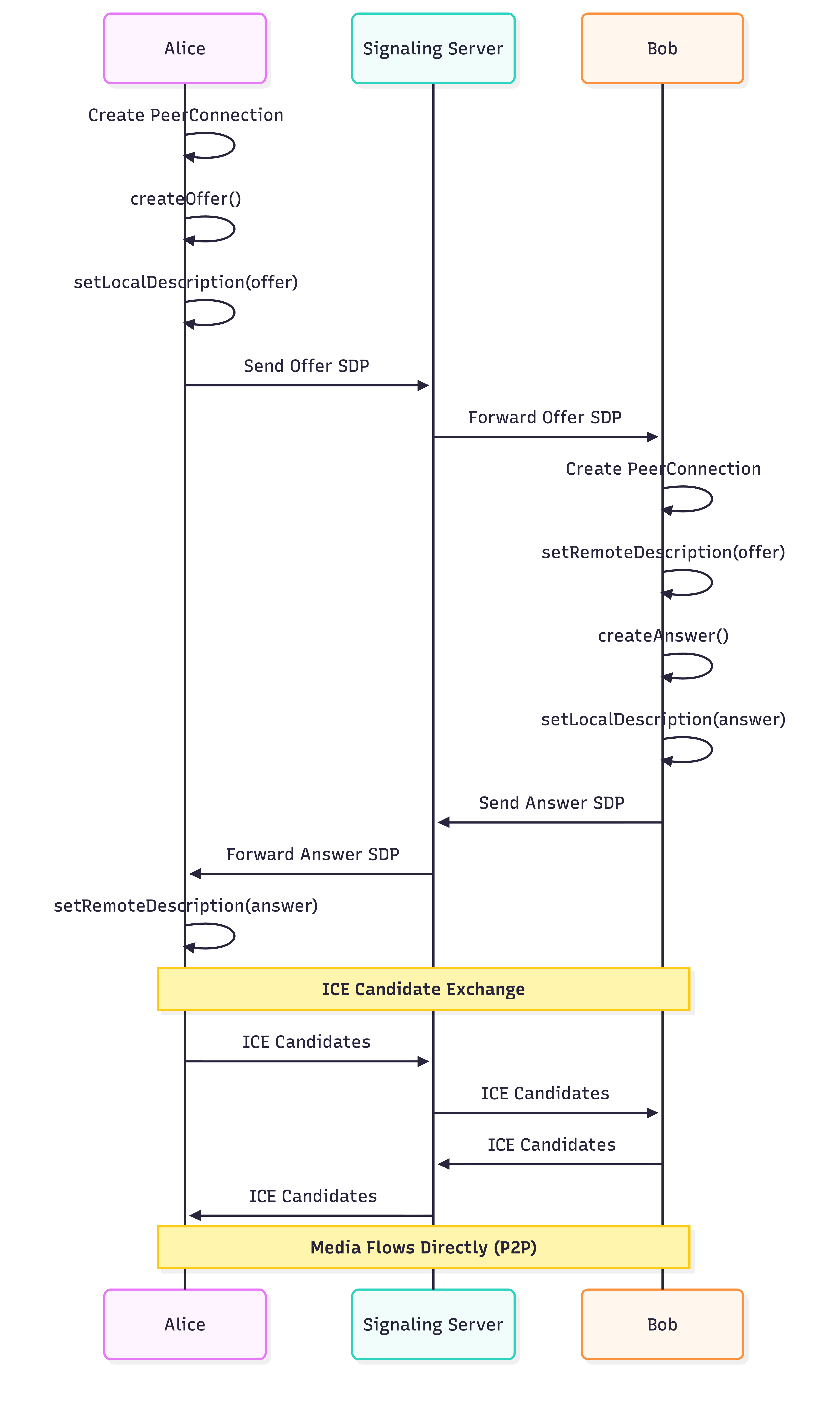

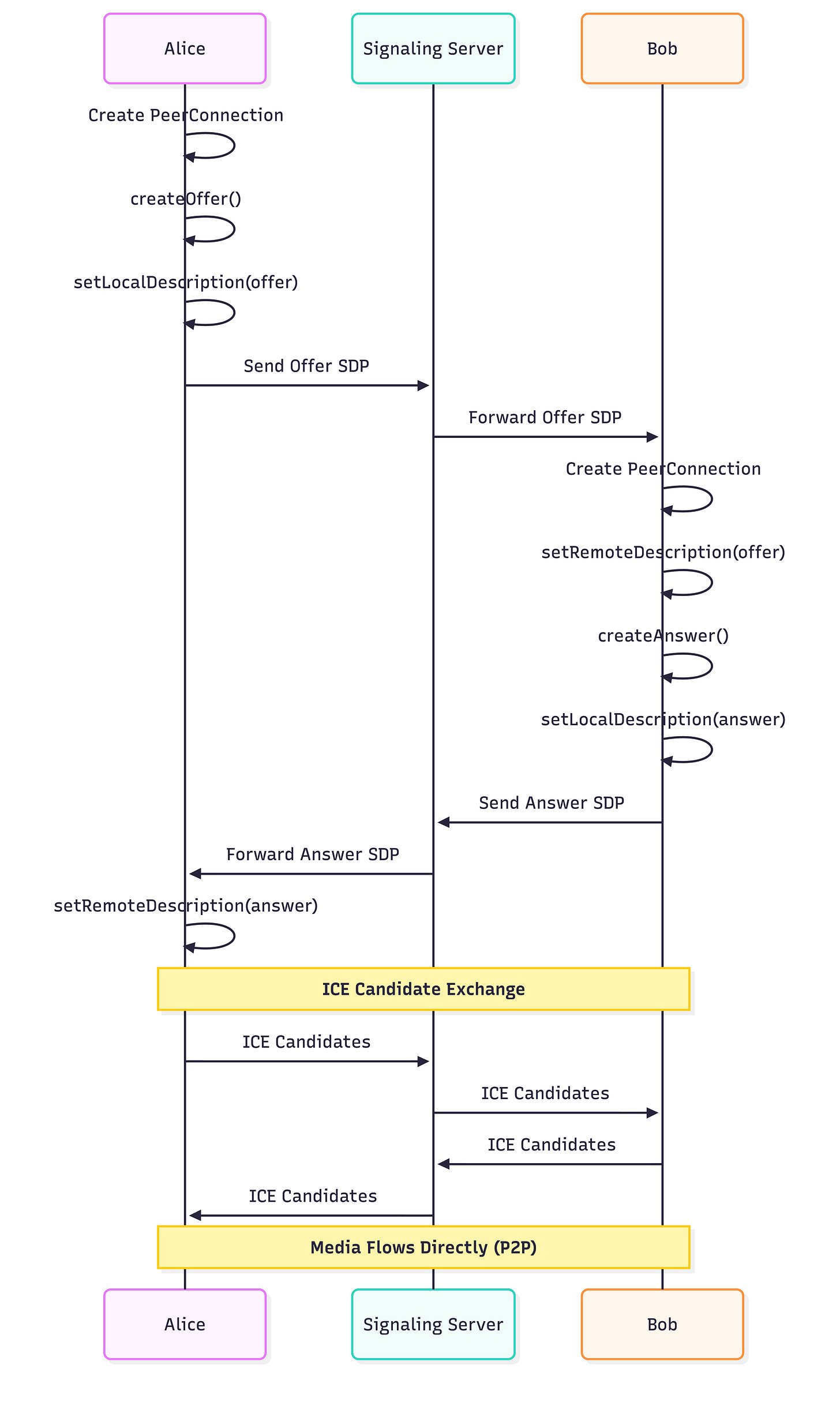

WebRTC uses an offer/answer model based on SDP (Session Description Protocol):
Media Transport: Moving Audio & Video
Once signaling establishes the session, the actual audio/video data needs to flow between devices.
RTP (Real-time Transport Protocol)
RTP is the workhorse of media transport. Each audio frame is encapsulated in an RTP packet:
0 1 2 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|V=2|P|X| CC |M| PT | Sequence Number |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Timestamp |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Synchronization Source (SSRC) identifier |
+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+
| Contributing Source (CSRC) identifiers |
| .... |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
| Payload Data |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+Why UDP, Not TCP?

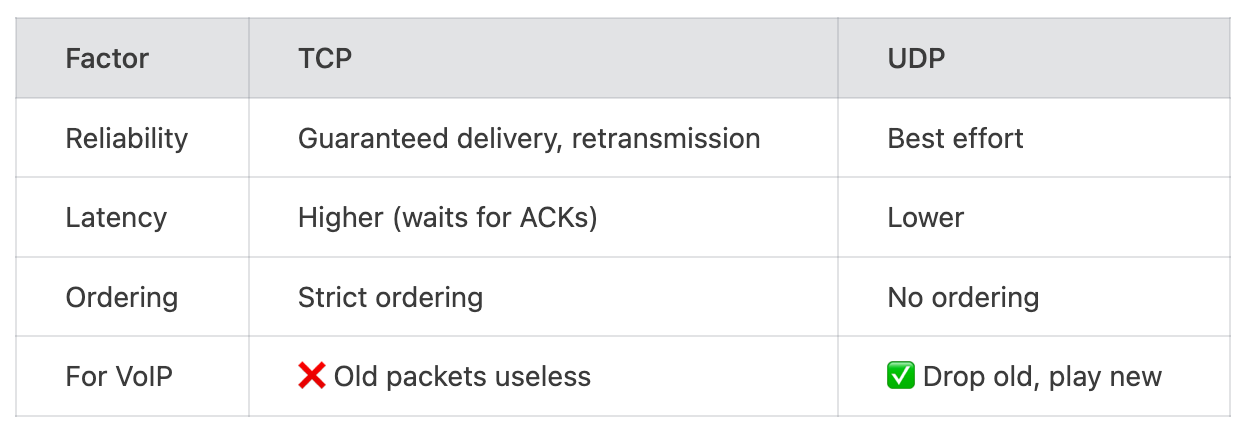

VoIP uses UDP because:
TIP
A retransmitted audio packet that arrives 500ms late is useless for real-time conversation. It’s better to drop it and continue with fresh audio.
Audio Codecs
// Common codec configurations
data class AudioCodecConfig(
val name: String,
val sampleRate: Int,
val bitrate: IntRange,
val frameSize: Int
)
val OPUS = AudioCodecConfig(
name = “opus”,
sampleRate = 48000,
bitrate = 6..510, // kbps
frameSize = 20 // ms
)
val G711_ULAW = AudioCodecConfig(
name = “PCMU”,
sampleRate = 8000,
bitrate = 64..64,
frameSize = 20
)NAT Traversal: The Hidden Challenge

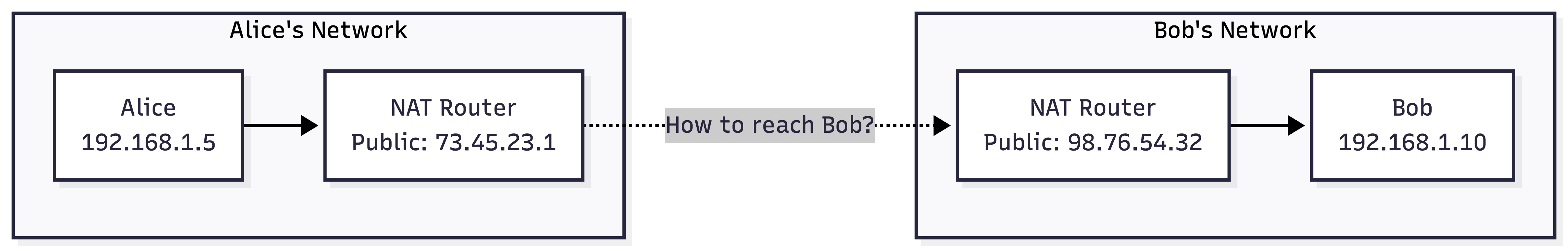

Most devices sit behind NAT (Network Address Translation), meaning they have private IP addresses that aren’t directly reachable from the internet. This is a major challenge for peer-to-peer communication.

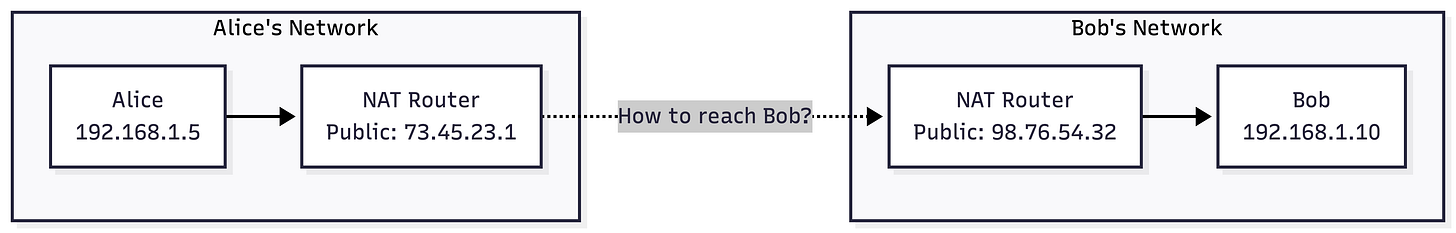

The Problem

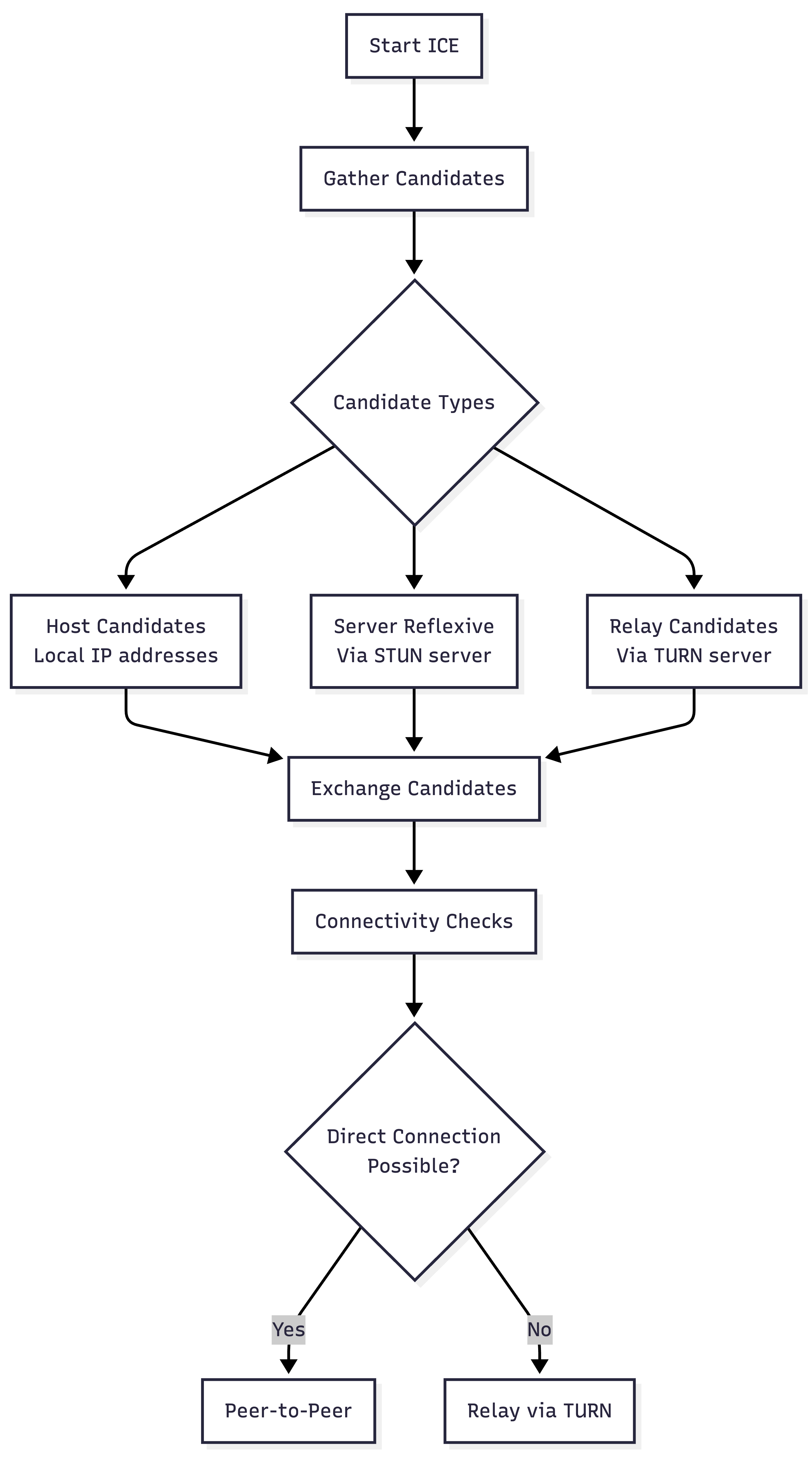

ICE Framework (Interactive Connectivity Establishment)
ICE is a framework that systematically discovers the best path between two peers:
STUN (Session Traversal Utilities for NAT)
STUN servers help discover public IP addresses:
// STUN request flowclass StunClient {
suspend fun discoverPublicAddress(stunServer: String): InetSocketAddress {
// 1. Send binding request to STUN server
val request = StunMessage(
type = MessageType.BINDING_REQUEST,
transactionId = generateTransactionId()
)
// 2. STUN server sees our public IP and port
// 3. Server reflects this back in response
val response = sendAndReceive(stunServer, request)
// 4. Extract XOR-MAPPED-ADDRESS attribute
return response.getMappedAddress()
}
}TURN (Traversal Using Relays around NAT)

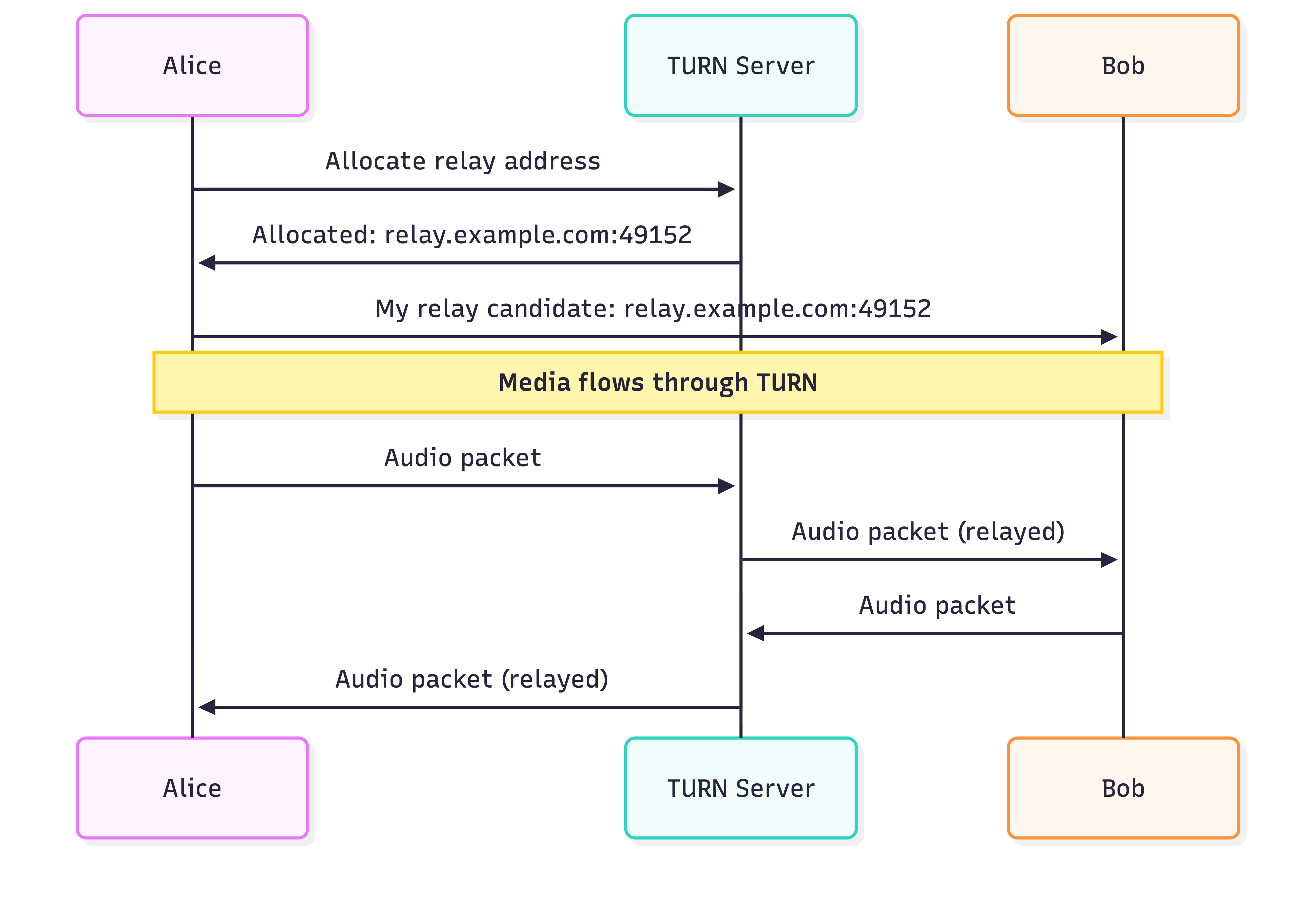

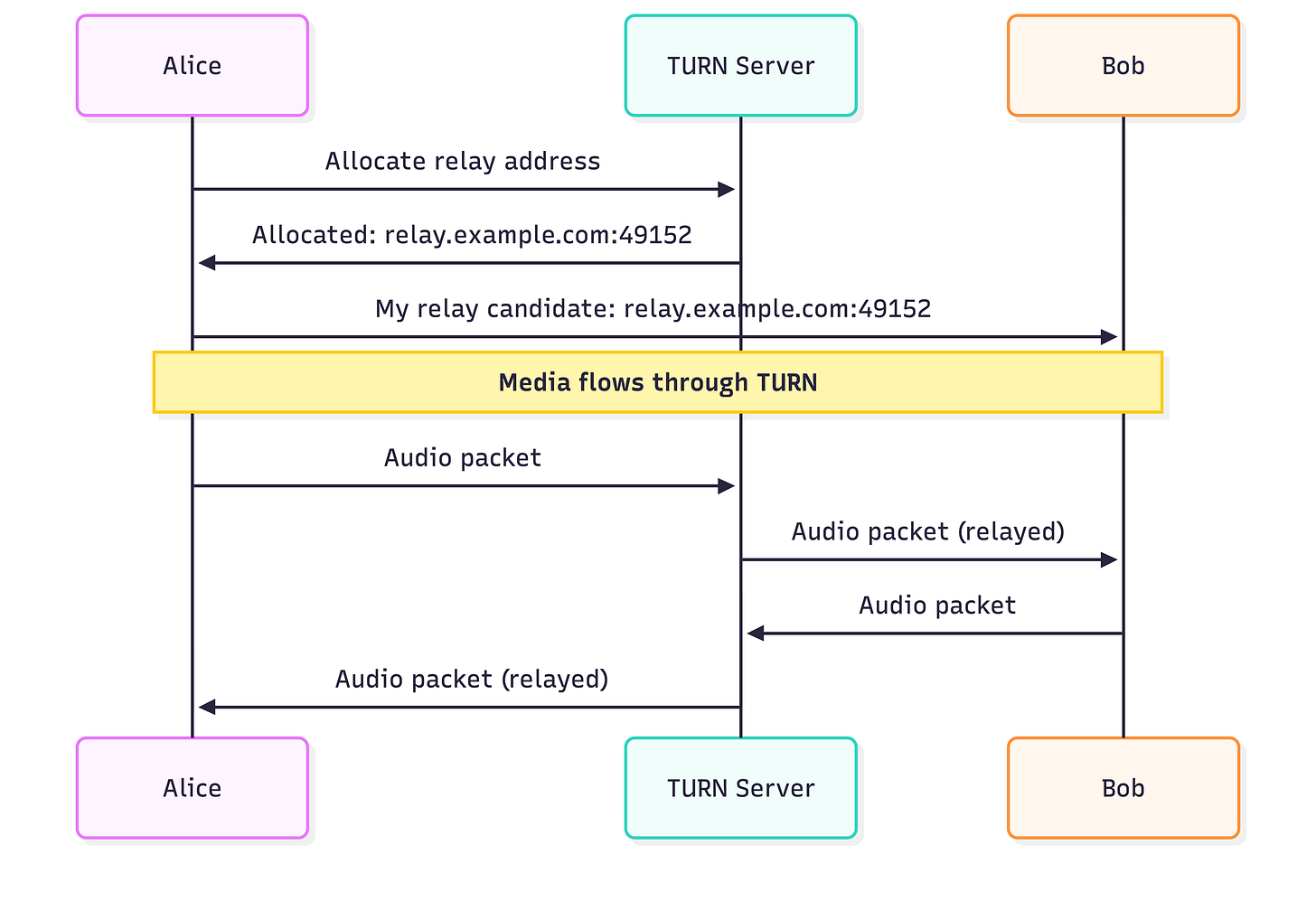

When direct connection fails, TURN servers relay media:
WARNING
TURN relaying adds latency and costs money (bandwidth). Apps try to avoid it by attempting direct connection first. Approximately 10-15% of calls require TURN.
Android Implementation Deep Dive
Now let’s look at how to implement this on Android.
ConnectionService API
Android 6.0+ provides the ConnectionService API for integrating with the system dialer:
class VoIPConnectionService : ConnectionService() {
override fun onCreateOutgoingConnection(
connectionManagerPhoneAccount: PhoneAccountHandle,
request: ConnectionRequest
): Connection {
val connection = VoIPConnection(applicationContext).apply {
setConnectionProperties(Connection.PROPERTY_SELF_MANAGED)
setCallerDisplayName(
request.extras.getString(”caller_name”),
TelecomManager.PRESENTATION_ALLOWED
)
setAddress(
request.address,
TelecomManager.PRESENTATION_ALLOWED
)
setInitializing()
}
// Start actual call setup
initiateCall(request, connection)
return connection
}
override fun onCreateIncomingConnection(
connectionManagerPhoneAccount: PhoneAccountHandle,
request: ConnectionRequest
): Connection {
val connection = VoIPConnection(applicationContext).apply {
setConnectionProperties(Connection.PROPERTY_SELF_MANAGED)
setRinging()
}
return connection
}
}
class VoIPConnection(private val context: Context) : Connection() {
private var peerConnection: PeerConnection? = null
override fun onAnswer() {
setActive()
// Start media flow
peerConnection?.let { pc ->
pc.createAnswer(/* ... */)
}
}
override fun onReject() {
setDisconnected(DisconnectCause(DisconnectCause.REJECTED))
destroy()
// Send rejection to server
}
override fun onDisconnect() {
setDisconnected(DisconnectCause(DisconnectCause.LOCAL))
destroy()
// Clean up WebRTC resources
peerConnection?.close()
}
}Complete Call Flow Implementation
class CallManager @Inject constructor(
private val webRtcClient: WebRtcClient,
private val signalingClient: SignalingClient,
private val audioManager: CallAudioManager
) {
private var currentCallState: CallState = CallState.Idle
sealed class CallState {
object Idle : CallState()
data class Outgoing(val callId: String, val remoteUserId: String) : CallState()
data class Incoming(val callId: String, val callerInfo: CallerInfo) : CallState()
data class Connected(val callId: String) : CallState()
}
// Step 1: Initiate outgoing call
suspend fun startCall(remoteUserId: String): Result<String> {
val callId = UUID.randomUUID().toString()
currentCallState = CallState.Outgoing(callId, remoteUserId)
// Create WebRTC peer connection
webRtcClient.createPeerConnection()
// Add local audio track
webRtcClient.addLocalAudioTrack()
// Create and set local offer
val offer = webRtcClient.createOffer()
webRtcClient.setLocalDescription(offer)
// Send offer via signaling
signalingClient.sendOffer(
callId = callId,
toUserId = remoteUserId,
sdp = offer.description
)
// Gather and send ICE candidates
webRtcClient.onIceCandidate { candidate ->
signalingClient.sendIceCandidate(callId, remoteUserId, candidate)
}
return Result.success(callId)
}
// Step 2: Handle incoming call (from push notification)
suspend fun handleIncomingCall(callId: String, callerInfo: CallerInfo) {
currentCallState = CallState.Incoming(callId, callerInfo)
// Connect to signaling server
signalingClient.connect()
// Get the offer from server
val offer = signalingClient.getOffer(callId)
// Create peer connection
webRtcClient.createPeerConnection()
// Set remote description (the offer)
webRtcClient.setRemoteDescription(offer)
// Show incoming call UI
showIncomingCallNotification(callerInfo)
}
// Step 3: Answer the call
suspend fun answerCall() {
val state = currentCallState as? CallState.Incoming ?: return
// Add local audio track
webRtcClient.addLocalAudioTrack()
// Create answer
val answer = webRtcClient.createAnswer()
webRtcClient.setLocalDescription(answer)
// Send answer via signaling
signalingClient.sendAnswer(state.callId, answer.description)
// Start audio
audioManager.startAudio()
currentCallState = CallState.Connected(state.callId)
}
// Step 4: Handle remote answer (for outgoing calls)
suspend fun handleRemoteAnswer(answer: SessionDescription) {
webRtcClient.setRemoteDescription(answer)
audioManager.startAudio()
val state = currentCallState as? CallState.Outgoing ?: return
currentCallState = CallState.Connected(state.callId)
}
// Step 5: Handle ICE candidates from remote
fun handleRemoteIceCandidate(candidate: IceCandidate) {
webRtcClient.addIceCandidate(candidate)
}
// Step 6: End call
fun endCall() {
val callId = when (val state = currentCallState) {
is CallState.Outgoing -> state.callId
is CallState.Incoming -> state.callId
is CallState.Connected -> state.callId
else -> null
}
callId?.let { signalingClient.sendHangup(it) }
webRtcClient.close()
audioManager.stopAudio()
currentCallState = CallState.Idle
}
}WebRTC Client Wrapper
class WebRtcClient @Inject constructor(
private val context: Context
) {
private var peerConnectionFactory: PeerConnectionFactory? = null
private var peerConnection: PeerConnection? = null
private var localAudioTrack: AudioTrack? = null
private val iceServers = listOf(
PeerConnection.IceServer.builder(”stun:stun.l.google.com:19302”).createIceServer(),
PeerConnection.IceServer.builder(”turn:your-turn-server.com:3478”)
.setUsername(”username”)
.setPassword(”password”)
.createIceServer()
)
fun initialize() {
val options = PeerConnectionFactory.InitializationOptions.builder(context)
.setEnableInternalTracer(true)
.createInitializationOptions()
PeerConnectionFactory.initialize(options)
peerConnectionFactory = PeerConnectionFactory.builder()
.setAudioDeviceModule(JavaAudioDeviceModule.builder(context).createAudioDeviceModule())
.createPeerConnectionFactory()
}
fun createPeerConnection() {
val config = PeerConnection.RTCConfiguration(iceServers).apply {
sdpSemantics = PeerConnection.SdpSemantics.UNIFIED_PLAN
continualGatheringPolicy = PeerConnection.ContinualGatheringPolicy.GATHER_CONTINUALLY
}
peerConnection = peerConnectionFactory?.createPeerConnection(
config,
object : PeerConnection.Observer {
override fun onIceCandidate(candidate: IceCandidate) {
iceCandidateCallback?.invoke(candidate)
}
override fun onIceConnectionChange(state: PeerConnection.IceConnectionState) {
when (state) {
PeerConnection.IceConnectionState.CONNECTED -> {
// Call is connected!
}
PeerConnection.IceConnectionState.FAILED -> {
// Connection failed
}
else -> {}
}
}
override fun onTrack(transceiver: RtpTransceiver) {
// Remote audio track received
val track = transceiver.receiver.track()
if (track is AudioTrack) {
track.setEnabled(true)
}
}
// ... other callbacks
}
)
}
fun addLocalAudioTrack() {
val audioConstraints = MediaConstraints().apply {
mandatory.add(MediaConstraints.KeyValuePair(”googEchoCancellation”, “true”))
mandatory.add(MediaConstraints.KeyValuePair(”googNoiseSuppression”, “true”))
}
val audioSource = peerConnectionFactory?.createAudioSource(audioConstraints)
localAudioTrack = peerConnectionFactory?.createAudioTrack(”audio0”, audioSource)
peerConnection?.addTrack(localAudioTrack, listOf(”stream0”))
}
suspend fun createOffer(): SessionDescription = suspendCoroutine { continuation ->
val constraints = MediaConstraints().apply {
mandatory.add(MediaConstraints.KeyValuePair(”OfferToReceiveAudio”, “true”))
}
peerConnection?.createOffer(object : SdpObserver {
override fun onCreateSuccess(sdp: SessionDescription) {
continuation.resume(sdp)
}
override fun onCreateFailure(error: String) {
continuation.resumeWithException(Exception(error))
}
// ...
}, constraints)
}
// Similar implementations for createAnswer, setLocalDescription, setRemoteDescription...
}Audio Management
class CallAudioManager @Inject constructor(
private val context: Context
) {
private val audioManager = context.getSystemService(Context.AUDIO_SERVICE) as AudioManager
private var audioFocusRequest: AudioFocusRequest? = null
@RequiresApi(Build.VERSION_CODES.O)
fun startAudio() {
// Request audio focus
audioFocusRequest = AudioFocusRequest.Builder(AudioManager.AUDIOFOCUS_GAIN_TRANSIENT)
.setAudioAttributes(
AudioAttributes.Builder()
.setUsage(AudioAttributes.USAGE_VOICE_COMMUNICATION)
.setContentType(AudioAttributes.CONTENT_TYPE_SPEECH)
.build()
)
.setAcceptsDelayedFocusGain(false)
.build()
audioManager.requestAudioFocus(audioFocusRequest!!)
// Set mode to voice communication
audioManager.mode = AudioManager.MODE_IN_COMMUNICATION
// Enable speaker if needed
audioManager.isSpeakerphoneOn = false
}
fun stopAudio() {
audioFocusRequest?.let { audioManager.abandonAudioFocusRequest(it) }
audioManager.mode = AudioManager.MODE_NORMAL
}
fun toggleSpeaker() {
audioManager.isSpeakerphoneOn = !audioManager.isSpeakerphoneOn
}
}Architecture Diagram
Here’s the complete architecture of a VoIP calling application:
Security Considerations
VoIP security is critical. Here’s how modern apps protect calls:
1. Encrypted Signaling
// Use TLS for all signaling
val client = OkHttpClient.Builder()
.sslSocketFactory(sslContext.socketFactory, trustManager)
.build()
val webSocket = client.newWebSocket(
Request.Builder()
.url(”wss://signaling.example.com/ws”) // WSS, not WS
.build(),
webSocketListener
)2. SRTP (Secure RTP)
WebRTC automatically encrypts media using DTLS-SRTP:
DTLS Handshake → Derive SRTP Keys → Encrypt RTP packets3. Authentication
// JWT-based authentication for signaling
data class SignalingAuthRequest(
val userId: String,
val token: String,
val deviceId: String
)
// Server validates token before allowing connection4. E2E Encryption (Optional)
For apps requiring end-to-end encryption (like Signal):
Conclusion
Building a reliable internet calling application requires orchestrating multiple complex systems:
Push notifications to wake devices and alert users of incoming calls
Signaling protocols to negotiate and establish sessions
WebRTC/RTP for real-time media transport
ICE/STUN/TURN for NAT traversal
Android-specific APIs like
ConnectionServicefor system integration
The beauty of modern VoIP is how these pieces work together seamlessly. When you tap “Call” in WhatsApp:
A push notification wakes your friend’s phone
WebSocket signaling sets up the session
ICE candidates find the optimal path
SRTP-encrypted audio flows in real-time
All within seconds
Understanding this architecture helps you build more reliable calling features, debug connectivity issues, and appreciate the engineering behind the apps we use daily.
Amazing...
Solid breakdown of the VoIP stack. The part about ConnectionService integration was particularly helpful because most tutorials skip over Android's system-level call UI. I actualy built a WebRTC client last year and ran into the exact NAT traversal issues you describe, ended up burning way more TURN bandwidth than expected because symmetric NAT is more commonthan people think. Would be cool to see a followup on handling network switches mid-call.
